Mycronic/MyData
Click here for an exclusive video of the advantages of ordering our
tools
|
| Part Number |
MyData Cross Reference |
Description |
MyData Tips (click here for photo)
Click here for an exclusive video featuring installation
tips |
| MTP-A12-1 |
|
TIP, TAPERED, .8 ID, BLACK |
| MTP-A12-2 |
D-012-0263D4 |
TIP, STEPPED, .8 ID, BLACK |
| MTP-A12-3 |
|
TIP, TAPERED, .8 ID, WHITE |
| MTP-A12-4 |
|
TIP, STEPPED, .8 ID, WHITE |
| MTP-A13-1 |
D-012-1162 |
TIP, TAPERED, 1.2 ID, BLACK |
| MTP-A13-2 |
|
TIP, TAPERED, 1.2 ID, WHITE |
| MTP-A14-1 |
D-012-0408B |
TIP, 2.0 ID, BLACK |
| MTP-A14-2 |
|
TIP, 2.0 ID, WHITE |
| MTP-A14-3 |
2009-0605 |
TIP, 2.0 ID, BLACK W/3mm O-RING (more information) |
| MTP-C14-1 |
L-012-0823 |
TIP, TAPERED, SMALL HOLE (.25mm), BLACK |
| MTP-C14-2 |
|
TIP, TAPERED, LARGE HOLE (.5mm), BLACK |
| MTP-C14-3 |
|
TIP, STEPPED, LARGE HOLE (.5mm), BLACK |
| MTP-C14-4 |
|
TIP,TAPERED, SMALL HOLE (.25mm), WHITE |
| MTP-C14-5 |
|
TIP, TAPERED, LARGE HOLE (.5mm), WHITE |
| MTP-C14-6 |
|
TIP, STEPPED, LARGE HOLE (.5mm), WHITE |
| MTP-C14-S1 |
|
TIP, LONG REACH (.5mmOD X .25mmID), STAINLESS |
| MTP-C14-S2 |
|
TIP, LONG REACH (.8mmOD X .35mmID), STAINLESS |
| MTP-A24 |
L-012-0542 |
TIP, JUKI STYLE |
| M-H01 |
|
HYDRA H01 NOZZLE |
| M-H02 |
|
HYDRA H02 NOZZLE |
| M-H03 |
|
HYDRA H03 NOZZLE |
| MTP-H04 |
L-012-0576 |
MICRO-MECHANICS R-730 TIPS FOR H04 TOOLS |
| M-HS1 |
|
HYDRA SPECIAL HO3 NOZZLE FOR LEDs |
| M-H05 |
|
HYDRA H05 NOZZLE COMING SOON |
| M-H06 |
|
HYDRA H06 NOZZLE |

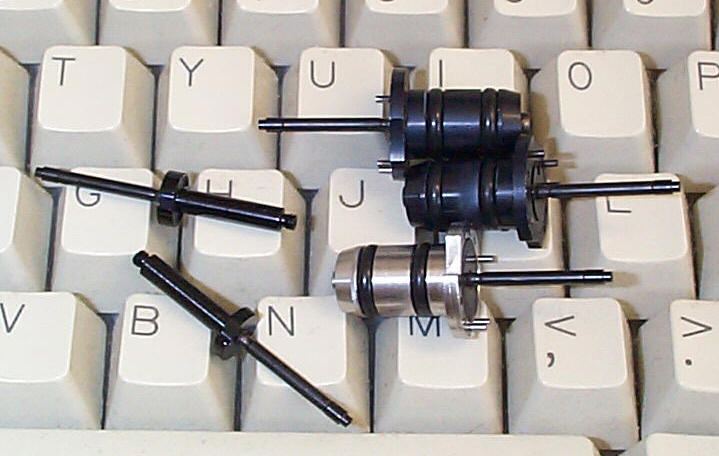

| MyData Tools |
| MTL-A12-N |
L-012-0011E |

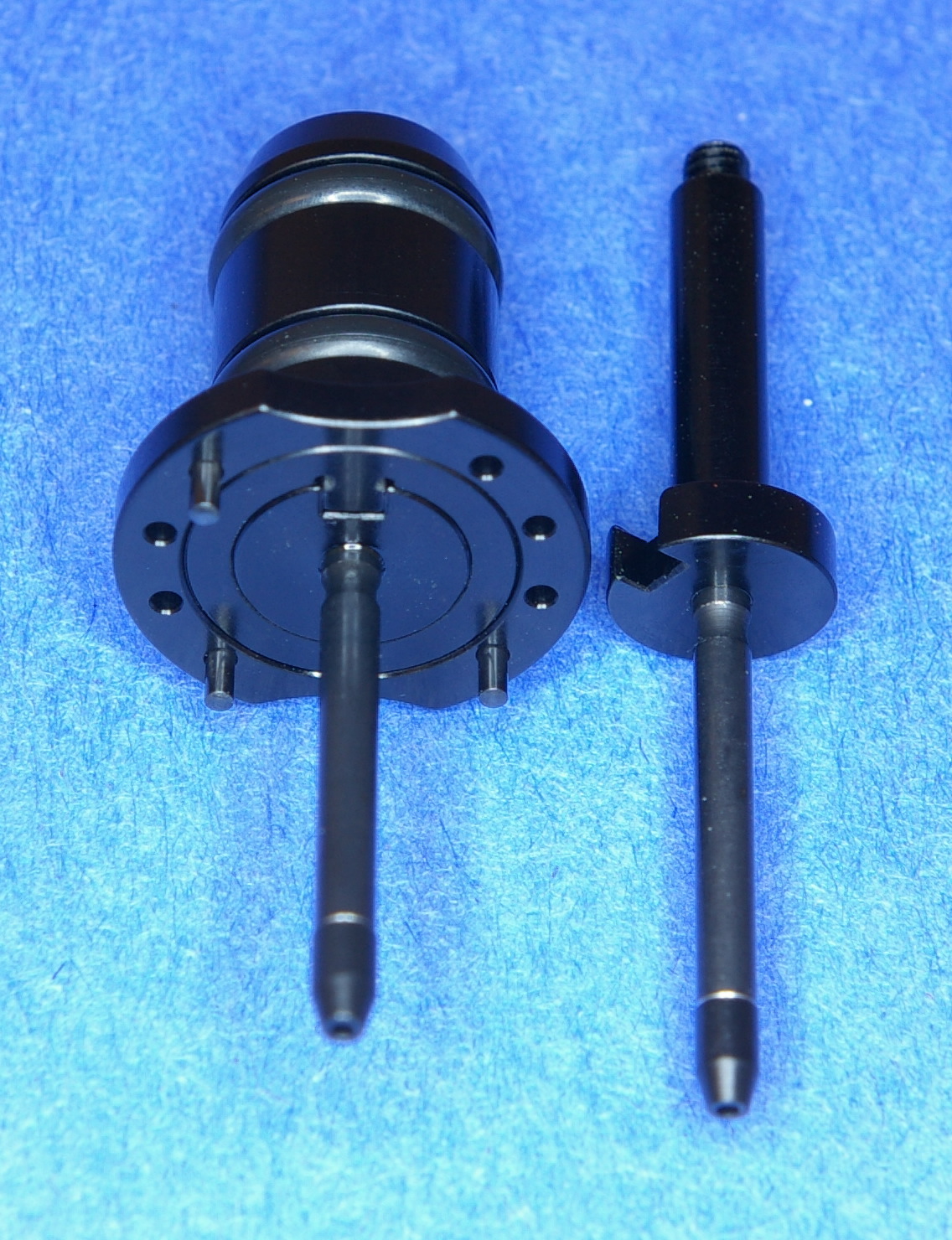

A-12 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER |
| MTL-A13-N |
L-012-0012F |
A-13 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER |
| MTL-A14-N |
L-012-0109C |

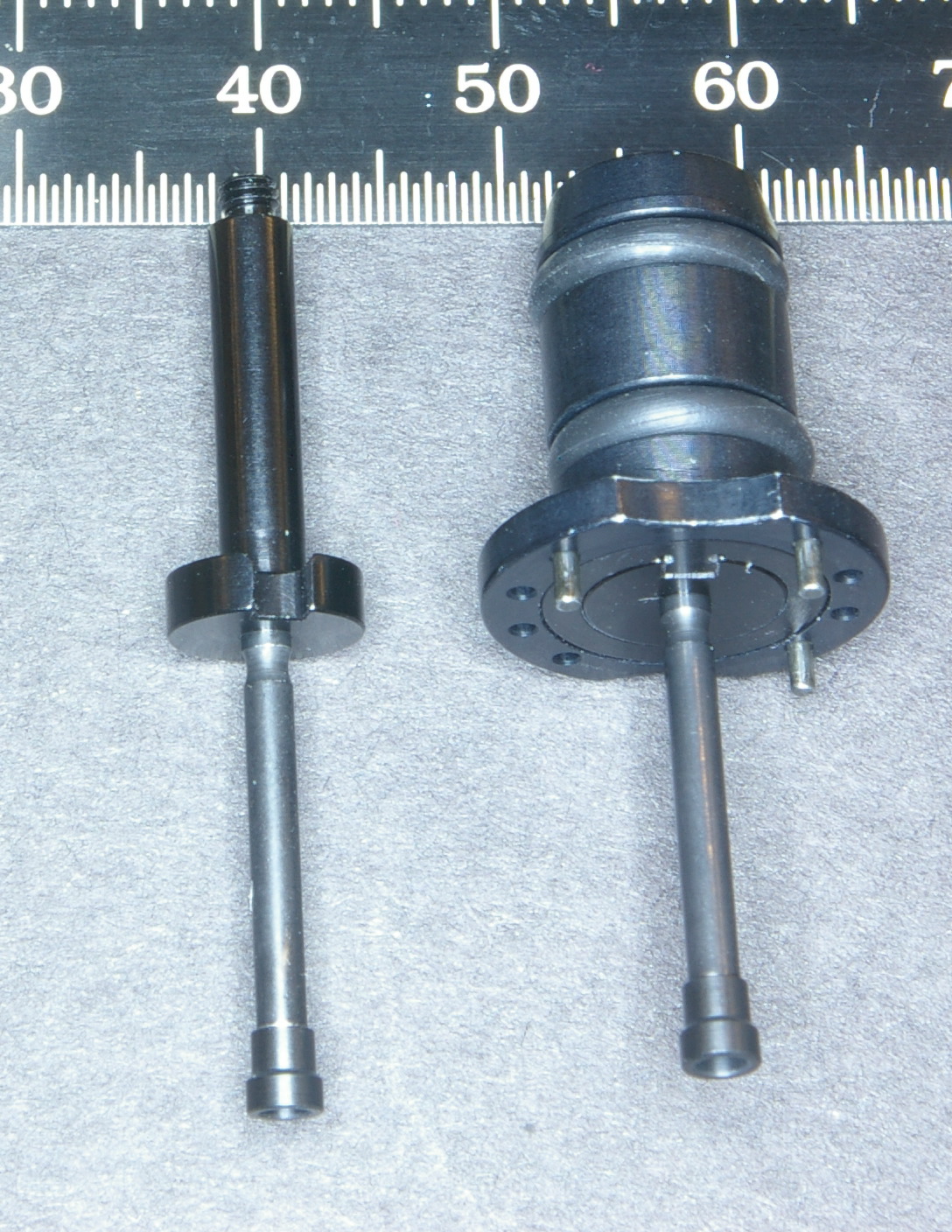

A-14 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER |
| MTL-C14-N |
L-012-0802 |
C-14 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER |
| MTL-R1 |
|
TOOL, REBUILT W/EXTRA SLIDER |
| MTL-R2 |
|
TOOL, REBUILT, SOLID W/MM 12U3or12C3 ADAPTER and 2 TIPS * |
| MTL-R3 |
|
TOOL, REBUILT, SPRING LOADED W/MM SLIDER and 2 TIPS * |
| MSL-N1 |
|
SLIDER, NEW W/TIP (for use with black aluminum tools) |
| MSL-N2 |
|
SLIDER, BLACK (for use with stainless tools) |
| MSL-N3 |
|
SLIDER, WHITE (for use with stainless tools) |
| MSL-N4 |
|
SLIDER, NEW W/MM 12U3 ADAPTER and 2 TIPS * |
| MSL-N5 |
|
SLIDER, NEW W/MM 12C3 ADAPTER AND 2 TIPS * |
| MSL-R |
|
SLIDER, REPAIRED |
| * 12U3 TIP SIZES--1.5mm, 2.0mm, 2.25mm, 3.0mm, 4.0mm, 5.0mm.--PLEASE SPECIFY |
| * 12C3 TIP SIZES--6.0mm, 7.0mm, 8.0mm --PLEASE SPECIFY |
| Nozzle
bodies sent to us for rebuilding are fitted for our custom slider.
These sliders can be replaced in the field in less than two minutes.
This feature allows you to replace damaged sliders at a fraction of the
cost of a new spring loaded tool. This feature allows you to do
maintenance and cleaning of the tubes with minimal machine downtime. |
Features
Tips are highly finished PEEK material.
Tips also feature easy starting to make precision installation easy.
Tool bodies and sliders are machined on Super Precision Hardinge GT
to extreme tolerances.
Most tools are shipped with 2 sliders for extra life.
Low cost spare parts are available. |
| (*)
White tips are in stock for use when picking dark chips. Please specify
white when ordering. |
| Adapters for
Micro-Mechanics R3 round tips are available for solid and spring tools. |
|
